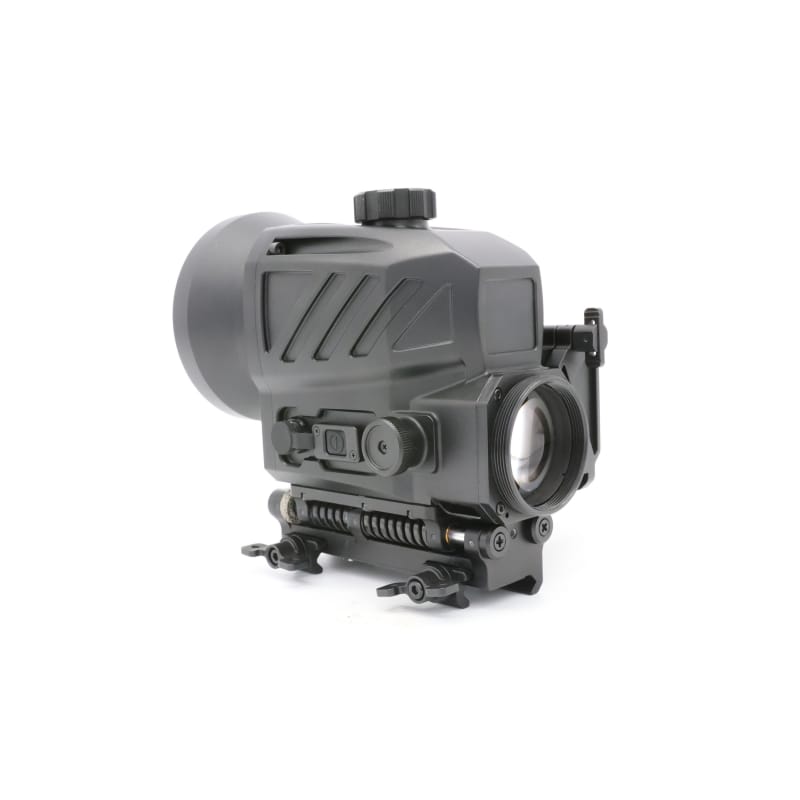

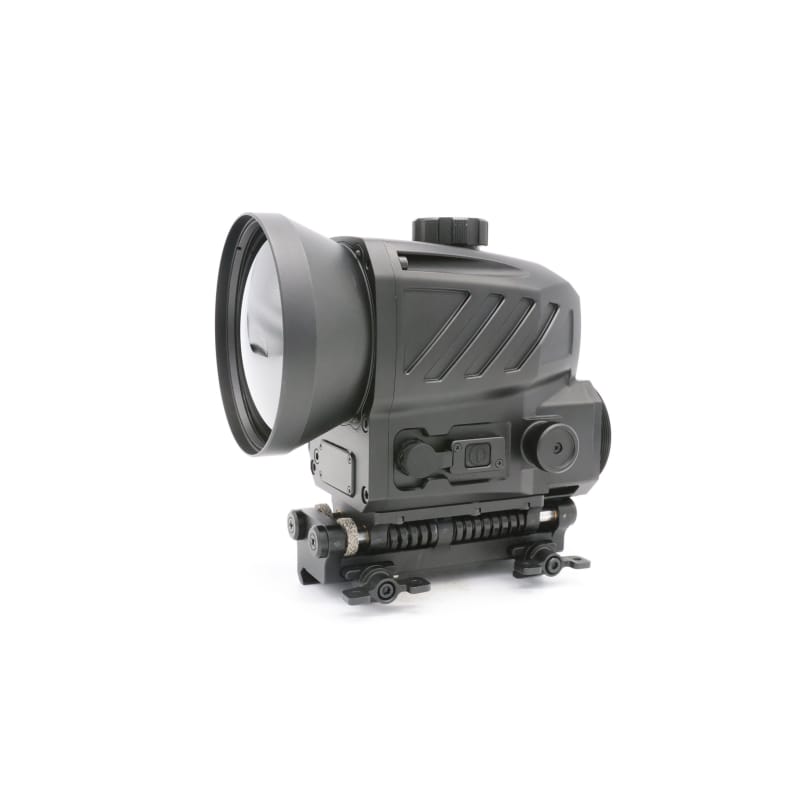

SWD LRTCO

The SWD LRTCO is a heavy-type clip-on thermal sight applicable to heavy weapon platforms, usable in conjunction with optical scopes or for independent observation. It features durable water and dust resistance, wireless data transmission, and high impact resistance.

Key Features

• High-Resolution Thermal Imaging: Equipped with a 640x512 pixels,12µm thermal imaging sensor.

• Ultra-Long Recognition Distance: Features a 75 mm high-magnification optical lens capable of human recognition up to 1,800 m.

• High Impact Resistance: Engineered to withstand impacts of up to 1400G.

• Ultra-Long Battery Life: Provides over 12 hours of continuous operation.

Technical Data

Thermal Channel

• Sensor Resolution: 640x512 pixels,12µm

• Frame Rate: 25 Hz

• Focal Length: 75 mm

• Field of View (H x V): 5.8ºx 4.6º

• System Magnification: 1x

Display

• Display Type: OLED

• Resolution: 800x 600

Physical & Power

• Dimensions ($W \times H \times D$): 144mm x 95mm x 136mm

• Weight: 1100 g (no battery)

• Battery Type: 2 x 18650 lithium batteries

• Battery Life: >12 hours

Interfaces & Environmental

• Video Output: PAL

• Wired Data: RS232

• Wireless: Wi-Fi

• Shock Resistance: 1400G, 0.3 ms, 1 Hz

• Ingress Protection: IP67 immersion rating
