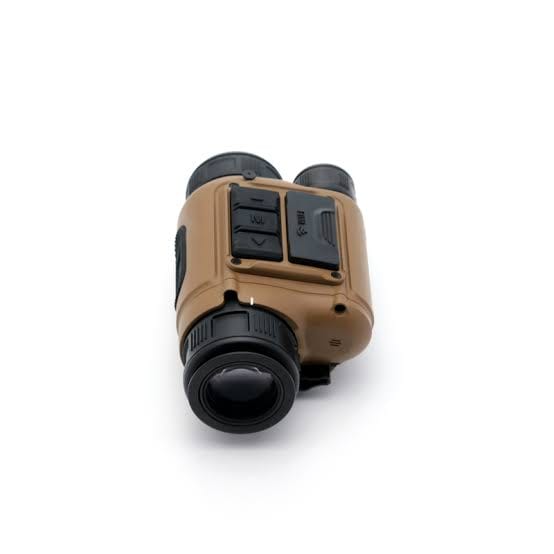

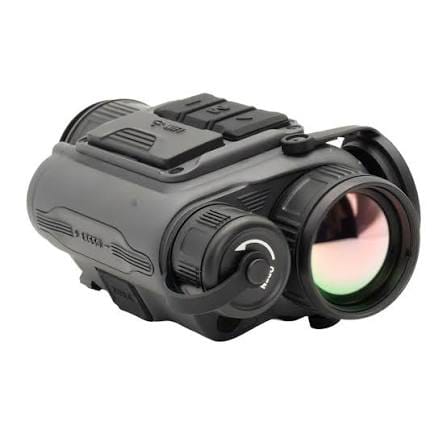

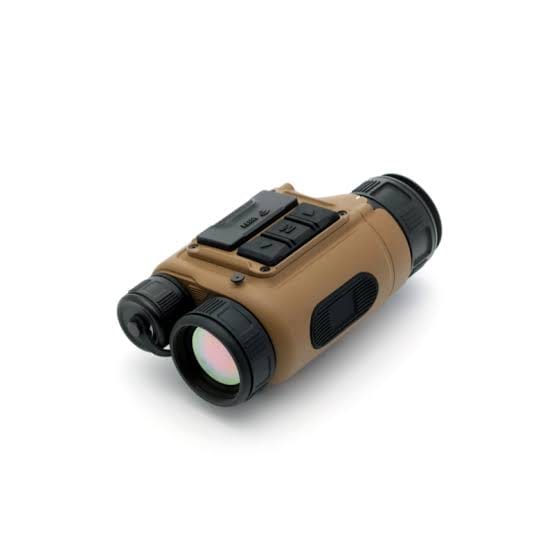

SWD MPT

The SWD MPT is a multi-purpose infrared thermal imaging device built with a shutterless design and advanced AI-ISP chip technology. Fitted with a high-definition 0.6-inch 1080P OLED display, it provides smooth, latency-free imaging and supports app interconnection, photo capturing, and video recording.

Key Features

• High-Performance Infrared Detection: Operates at a 60 Hz frame rate with an NETD of less than 25 mK for smooth, crisp thermal details.

• HD Display: Features a 0.6-inch 1920x1080 high-definition OLED screen.

• Four-in-One Versatility: Easily switches within one second across four operational modes: scope, clip-on, helmet-mounted, and handheld.

• Compact and Lightweight Body: Engineered in a compact form factor weighing only 340 g (excluding the battery).

Technical Data

Thermal Channel

• Sensor Resolution: 640 x 512 pixels, 12µm

• Frame Rate: 60 Hz

• Focal Length: 30 mm

• Field of View ($H \times V$): 14.6° x 11°

• System Magnification: 1.2x

• Digital Zoom: 0.5x / 1x / 2x / 4x

Laser Pointer

• Wavelength: 630 nm

Display & Eyepiece

• Screen Type: 0.6-inch OLED

• Resolution: 1920 x 1080

• Exit Pupil Distance: 25 mm

• Diopter: -5 to +3D

Storage & Power

• Internal Storage: Standard 64 GB onboard

• Battery Type: 1 x 18650 lithium battery

• Battery Life: >7 hours

• External Power Supply: 5V DC

Interfaces & Connectivity

• Wired Data: USB Type-C

• Wireless: Wi-Fi, Bluetooth

Environmental & Physical

• Dimensions ($W \times H \times D$): 130 mm x 70 mm x 55 mm

• Weight: <340 g (no battery)

• Shock Resistance: 1000G, 0.3 ms, 1 Hz

• Ingress Protection: IP67 immersion rating
